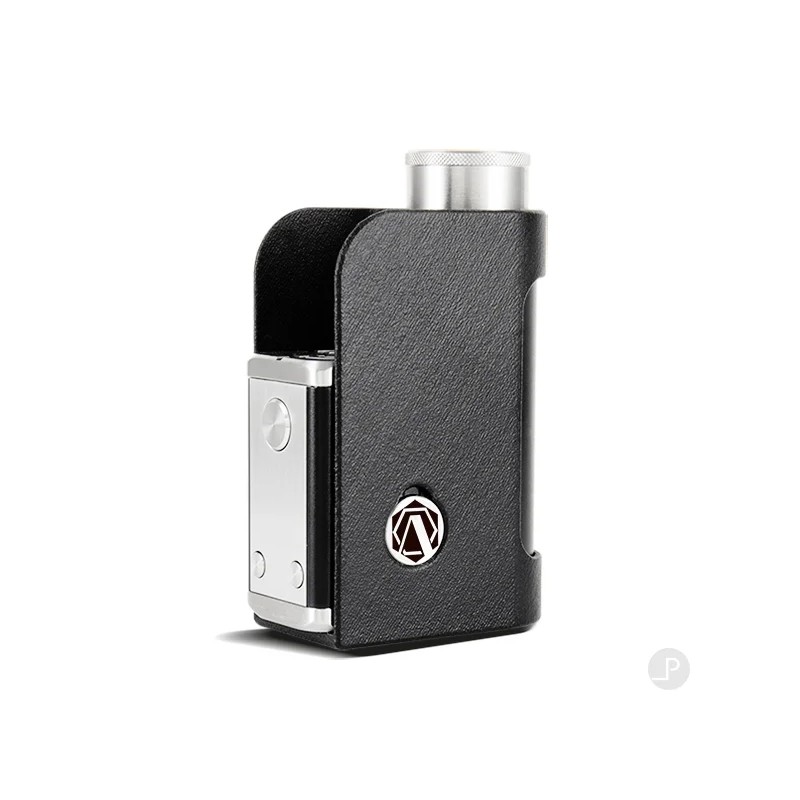

ARCANA SBS DNA60 By Arcana Mods

Following the popular PIPELINE BOX, Arcana Mods and PIPELINE present their second mod: the ARCANA SBS DNA60C.



Our goal remains unchanged: to develop high-end mods made from premium materials and equipped with robust, reliable components.



The ARCANA SBS was designed to be compact, expandable, and compatible with various battery sizes.



In addition to the standard version, which offers an affordable entry into the high-end market with the ARC1 chipset, we are introducing the ARCANA SBS DNA60C, a version for all enthusiasts.



The integrated DNA60C chipset from Evolv is renowned worldwide for its high precision, efficiency, and reliability. Out of the box, our extensively customized firmware offers eight application profiles – including a dedicated boost mode and six specialized temperature profiles for the most common wire types. Furthermore, we've integrated the discharge curve of the popular 18650 "Murata VTC5A" battery into the battery management system to ensure the most realistic charge level indicator possible.



To maximize flexibility, the Arcana Mods team has also included a USB-C port in the ARCANA SBS DNA60C, enabling the use of "EScribe." This software, provided by Evolv, offers extensive customization options, such as creating custom wire types, temperature profiles, and display interfaces, as well as setting the discharge cutoff voltage and much more.



The standard 18650 battery sleeve is also available in other sizes, allowing the use of 18500 batteries.



The body of the ARCANA SBS DNA60C is made of anodized aluminum, making it particularly resistant to scratches and perspiration. The front, top, and bottom plates, as well as the buttons and battery sleeve, are constructed from high-quality 304 stainless steel. The ARCANA SBS DNA60C features a highly spring-loaded copper-beryllium positive contact to ensure optimal conductivity.



The battery can be charged either with a charger or directly via the integrated USB-C port at a maximum current of 1.2A.



We recommend charging the batteries with an external charger. A discreet red LED next to the USB-C port illuminates when the battery is charging.



The standard 18650 battery sleeve is also available in other sizes, allowing the use of 18500 batteries.



While we are confident in the durability of the ARCANA SBS DNA60C, we want to emphasize our commitment to sustainability and customer satisfaction by offering our in-house repair service in Munich to our customers even after the standard one-year manufacturer's warranty has expired!



The ARCANA SBS comes with two rubber rings that can be used as a screw-on aid should an atomizer become stuck.



For atomizers with a 23 mm diameter, one rubber ring is usually sufficient. For 22 mm atomizers, we recommend using both rings on top of each other to ensure a secure grip.



When sliding the rubber rings on, they will need to be stretched slightly to fit snugly around the atomizer. This is normal and improves the grip when unscrewing.



Slide the rubber ring over the atomizer as far down the atomizer base as possible. Then, gently stretch the ring (or rings), grip it with your thumb and forefinger, and carefully unscrew the atomizer.



The rubberized surface significantly improves adhesion without scratching the atomizer.



The ARCANA SBS also includes a screen protector that protects both the display and the stainless steel base plate.



Even when using a sleeve, we recommend using the screen protector, as it provides a tighter fit and additional scratch protection.





Slide the rubber ring over the atomizer as far as possible. Before applying the screen protector, thoroughly clean the stainless steel base plate with isopropyl alcohol to remove any grease and dust residue.



Then carefully and precisely position the screen protector – the screw recesses on the base plate are particularly useful for orientation.



When replacing the screen protector, please completely remove any adhesive residue with isopropyl alcohol before applying a new one.



Screen protectors are also available as an optional 5-pack.



Note: The sleeve shown in the last image is not included.



Which ARCANA SBS is right for me?



If you primarily vape in Variable Wattage (VW) mode, we recommend the ARCANA SBS. If you prefer Temperature Control (TC) mode, use different wire types, and want a color display and advanced settings, we recommend the ARCANA SBS DNA60C.



Features:



- 1 Watt to 60 Watts

- 100°C - 315°C (200°F - 600°F)



- Spring-loaded copper-beryllium positive terminal



- Up to 9V output voltage

- OLED color display

- Temperature controlled vaping

- Replay

- Compatible atomizer resistance range from 0.1 ohms to 3 ohms

- Reverse polarity protection

- USB-C charging port (maximum charging current 1.2 amps)

- Serial number included

- 1-year warranty

- Service in Munich



Further specifications:



Connection: 510

Material: 304 stainless steel and aluminum

Height: 63 mm (box), 74.35 mm (with 18650 battery sleeve), 42.3 mm (510 platform)

Depth: 23 mm

Width: 47.6 mm

Weight: 95 g

Positive contact: Spring-loaded

Maximum atomizer diameter: 23 mm



Package contents:



1 x ARCANA SBS DNA60C

2 x Rubber rings (atomizer removal tool)

2 x Screen protector



1 x 510 PVC screen protector



1 x Packaging

1 x User manual



Please use only unprotected batteries in the ARCANA SBS DNA60C!



Warranty and guarantee:



2-year statutory warranty.



1-year guarantee - The guarantee is void if the device is opened (the screws are loosened).
